• Led Lamp Testing Equipment , Led Testing Equipment 0-30 Degree GB7000
  • Led Lamp Testing Equipment , Led Testing Equipment 0-30 Degree GB7000
قیمت مناسب Led Lamp Testing Equipment , Led Testing Equipment 0-30 Degree GB7000 آنلاین

Led Lamp Testing Equipment , Led Testing Equipment 0-30 Degree GB7000

جزئیات محصول:

Place of Origin: China
نام تجاری: KingPo
گواهی: Calibration Certificate

پرداخت:

Minimum Order Quantity: 1
قیمت: To be quoted
جزئیات بسته بندی: جعبه ایمنی کارتن یا جعبه تخته سه لا
زمان تحویل: 7 روز
Payment Terms: T/T
قابلیت ارائه: 50 عدد در هر ماه
اکنون تماس بگیرید

اطلاعات تکمیلی

Environment: 0℃~+40℃ power supply: 220V±10% 50Hz
Tilt angle: 0-30 ° stepless adjustable precision: ± 0.5 °
maximum weight load: 50kg Motor speed: 0.50r/min
برجسته:

,

,

led testing equipment

توضیحات محصول

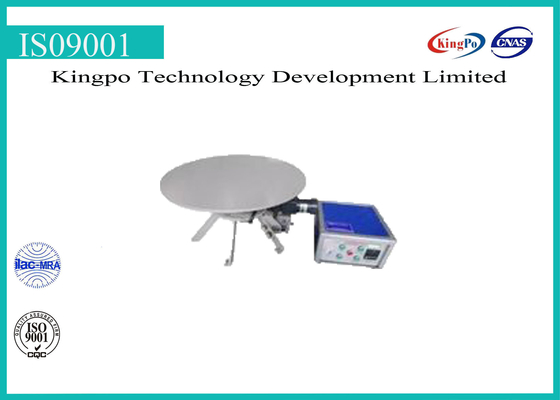

Light Testing Equipment Lamp Tilt Test Bench 0-30 Degree GB7000





Product information:



This device complies with GB7000 and other standards, the device consists of a work surface and angle adjustment device, is suitable for all types of portable lamps and similar electrical appliances products for mechanical stability test, the test sample is placed on countertops, to assess its mechanical stability through different tilt angles.



Technical specification and parameter configuration



Working condition:



Environment:0℃~+40℃;Working power supply :220V±10% 50Hz



Technical index:

1, Tilt angle :0-30 ° stepless adjustable, electric control, encoders intelligent digital display; equipped with angle measuring instrument calibration, easy to operate, high accuracy angle, precision ± 0.5 °;

2, The maximum weight load: 50kg, (load can be improved as per customer requirements)steel plate surface is treated by painting;

3, Motor speed: 0.50r/min (frequency control for optional), there are reliable earthing contact and power plug connector on the test bench of accessible metal surface;

4, Table diameter: 800mm;

5, The test bench with stable whole structure, and beautiful appearance.



می خواهید اطلاعات بیشتری در مورد این محصول بدانید
Led Lamp Testing Equipment , Led Testing Equipment 0-30 Degree GB7000 آیا می توانید جزئیات بیشتری مانند نوع ، اندازه ، مقدار ، مواد و غیره برای من ارسال کنید
با تشکر!
