CK1 / CK2 / CK3 / CK4 Creepage Distance Test Cards Stainless Steel Material

جزئیات محصول:

Place of Origin: China
نام تجاری: KingPo
گواهی: Calibration Certificate
Model Number: CK1 / CK2 / CK3 / CK4

پرداخت:

Minimum Order Quantity: 1
قیمت: To be quoted
جزئیات بسته بندی: جعبه ایمنی کارتن یا جعبه تخته سه لا
Payment Terms: T/T
اکنون تماس بگیرید

اطلاعات تکمیلی

CK-1: 8 creepage distance gauges in total CK-2: 15 creepage distance gauges in total
CK-3: 21 creepage distance gauges in total CK-4: 23 creepage distance gauges in total
CK-5: 27 creepage distance gauges in total Material: Stainless steel
برجسته:

,

,

tv signal tester

توضیحات محصول

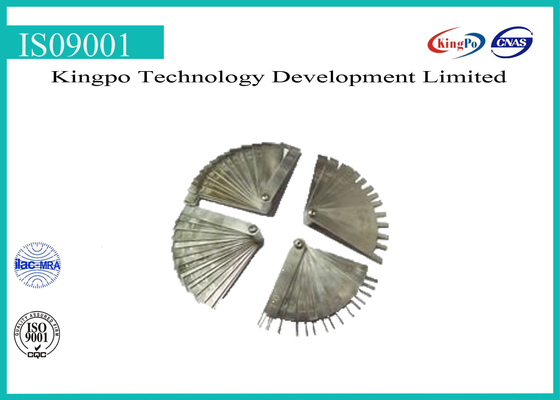

CK1 / CK2 / CK3 / CK4 Stainless Creepage Distance Test Cards IEC60335





Product information:



We have five kinds of Creepage Distances Test Cards, CK1/CK2/CK3/CK4/CK5.These test gauges conforms to IEC60884-1, IEC60598, and IEC60335 etc.They are used to determine the shortest path between two conductive parts, or between a conductive part and the bounding surface of the equipment, measured along the surface of the insulation, with specifications made according to the requirements.



Assortments:



HT Creepage Distance Gauges Type CK1

With 8 creepage distance gauges:

1,0-1,5-2,0-2,5-3,0-4,0-6,0-8,0mm.

HT Creepage Distance Gauges Type CK2

With 15 creepage distance gauges:

1,0 to 8,0mm in steps of 0,5mm.

HT Creepage Distance Gauges Type CK3

With 21 creepage distance gauges:

1,0-1,2-1,4-1,5-2,0-2,4-2,5-2,8-3,0-3,2-3,3-4,0-4,5-5,0-5,5-6,0-6,3-6,4-6,5-7,0-8,0mm

HT Creepage Distance Gauges Type CK4

With 23 creepage distance gauges:

1,0-1,2-1,4-1,5-1,6-2,0-2,4-2,5-2,8-3,0-3,2-3,3-3,5-4,0-4,5-5,0-5,5-6,0-6,3-6,4-6,5-7,0-8,0mm

HT Creepage Distance Gauges Type CK5

With 27 creepage distance gauges:

1,0-1,1-1,2-1,3-1,4-1,5-1,6-1,7-1,8-1,9-2,0-2,5-2,8-3,0-3,2-3,3-4,0-4,5-5,0-5.5-6,0-6,3-6,5-7,0-8,0-9,0-10,0mm

Material: Stainless steel



Technical parameters:



Model No. Size Specification
CK-1 1/1.5/2/2.5/3/4/6/8 Total 8 creepage distance gauges
CK-2 1/1.5/2/2.5/3/3.5/4/4.5/5/5.5/6/6.5/7/7.5/8 Total 15 creepage distance gauges
CK-3 1/1.2/1.4/1.5/2/2.4/2.5/2.8/3/3.2/3.3/4/4.5/5/5.5/6/6.3/6.4/6.5/7/8 Total 21 creepage distance gauges
CK-4 1/1.2/1.4/1.5/1.6/2/2.4/2.5/2.8/3/3.2/3.3/3.5/4/4.5/5/5.5/6/6.3/6.4/6.5/7/8 Total 23 creepage distance gauges
CK-5 1/1.1/1.2/1.3/1.4/1.5/1.6/1.7/1.8/1.9/2/2.5/2.8/3/3.2/3.3/4/4.5/5/5.5/6/6.3/6.5/7/8/9/10 Total 27 creepage distance gauges
