| مقدار تولیدی: | 1 |
| قیمت: | To be quoted |
| بسته بندی استاندارد: | جعبه ایمنی کارتن یا جعبه تخته سه لا |
| دوره تحویل: | 35 روز کاری |
| روش پرداخت: | TT |
| ظرفیت عرضه: | 3 مجموعه در هر ماه |

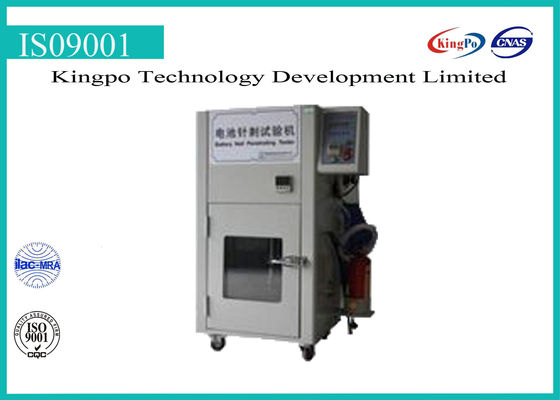

Battery nail penetrating testing machine
| Function |
Test safety capability of battery. Nail penetrates the specimen battery and check whether it will fire or explode |
| Type | Three tanks |
| Weight | 180kg |
| Internal space | 300mm*300mm*300mm |
| Corresponding test standard |
SJ/T11170-1998 UL2054:1997, GB/T18287-2000 |
Description
Using steel nail penetrating the battery, the tester is used to check safety capability of battery, and the battery is qualified without fire, and explosion.
The nail penetrating test is processed under temperature of 20℃±5℃.
The specimen battery has thermocouple whose contact spot is located on the largest surface.
Place the battery on the fuming cupboard, using stainless nail with diameter of 2-8mm to penetrate the centre position of largest side of battery at speed of 10mm/s-40mm/s and keep for 5s.
Test result: the battery is qualified without fire and explosion.
Applicable objects
Lithium battery, nickel battery, Ni-MH battery, lead-acid battery
Specifications
| Model | GX-5068 |
| Steel nail | ф2mm—ф8mm high temperature resistant |
| Space between battery surface and nail point | 150mm |
| Penetrating speed | 10—40mm/s |
| Penetrating force | 150~200KG |
| Force display | Pressure sensing and LED display |
| Test stroke | 150mm |
| Drive mode | Cylinder drive |
| Structure of tester | Box-type to be explosion proof, fire proof, anti-corrosion and easy to clean |
| Dimension of explosion proof tank | 450×750×550mm(W×H×D) |
| Materials of explosion-proof tank | Galvanized sheet with baking finish |
| Dimension of controller box | 300×260×170mm |
| Power | 1ф220V , 50HZ |
|
|
