IEC 60950-1 High Current Arc Ignition Electrical Testing Equipment OEM Available

جزئیات محصول:

Place of Origin: China
نام تجاری: KingPo
گواهی: Calibration Certificate

پرداخت:

Minimum Order Quantity: 1
قیمت: To be quoted
جزئیات بسته بندی: جعبه ایمنی کارتن یا جعبه تخته سه لا
زمان تحویل: 30 روز کاری
Payment Terms: T/T
قابلیت ارائه: 3 مجموعه در هر ماه
اکنون تماس بگیرید

اطلاعات تکمیلی

Working voltage: 220V/50Hz,1KVA Arc strike current: 33A±5%A
Arc strike speed: 40 times/min. Electrode separation velocity: 254±25㎜/S
Dropping liquid interval: 30±5S,adjustable Dropping liquid height: 35±5mm
برجسته:

Needle Flame Test Apparatus,Flammability Test Chamber

,

Flammability Test Chamber

توضیحات محصول

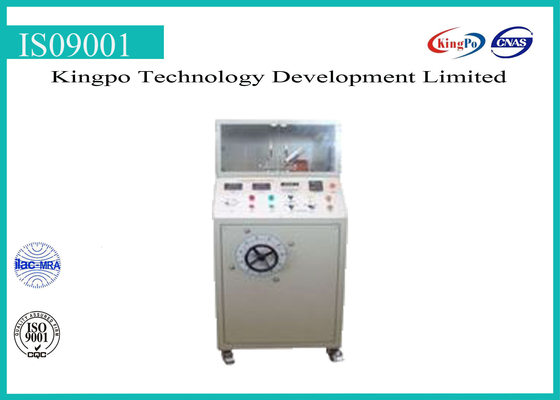

Heavy Current Arc Ignition Test Apparatus , Electrical Material Test Equipment





Product information:



This device conforms to standard requirement of IEC 60950-1,BS EN 60950-1,BS 7002, UL746A,IEC60947.1, IEC730.1. It is suitable for Arcing resistance test of electric and electronic products, household appliances and its materials. The working principle is to simulate the electric leakage on the insulator which may cause among different polar of live parts or between live parts and grounded (earthed) metal parts

It is used to measure and assess the arc resistance performance of insulator under the prescribed voltage.

Heavy current ignition tester adopts dual electrodes. With specific current (33A) and power factor (COSφ0.5), according to a certain arc strike speed (254mm/s) and repetition frequency (40 times/min), repeatedly arc strike to 200 times on the surface of specimen. The large current arc ignition performance (HAI) can be assessed according to whether the sample can be ignited. The smaller of the grade number, the more difficult for burning material.



Technical parameters:



Working voltage 220V/50Hz,1KVA
Arc strike current 33A±5%A
Arc strike speed 40 times/min.
Electrode separation velocity 254±25㎜/S
Arc strike times 0-9999 can be preset
Electrode material

Static electrode—copper,dia.Ф3.5,top bevel angle 30°

Moving electrode—stainless steel,dia.Ф3.0, top cone angle60°

Electrode included angle Form 45°with level,electrode head radius of curvature 0.1mm
Dropping liquid interval 30±5S,adjustable
Dropping liquid height 35±5mm
Dropping liquid delay 0.2S(magnetic valve opening time)
Dropping liquid size 45~50 drops/cm3
