| مقدار تولیدی: | 1 |
| قیمت: | To be quoted |
| بسته بندی استاندارد: | جعبه ایمنی کارتن یا جعبه تخته سه لا |
| دوره تحویل: | 7 روز |
| روش پرداخت: | T/T |
| ظرفیت عرضه: | 50 عدد در هر ماه |

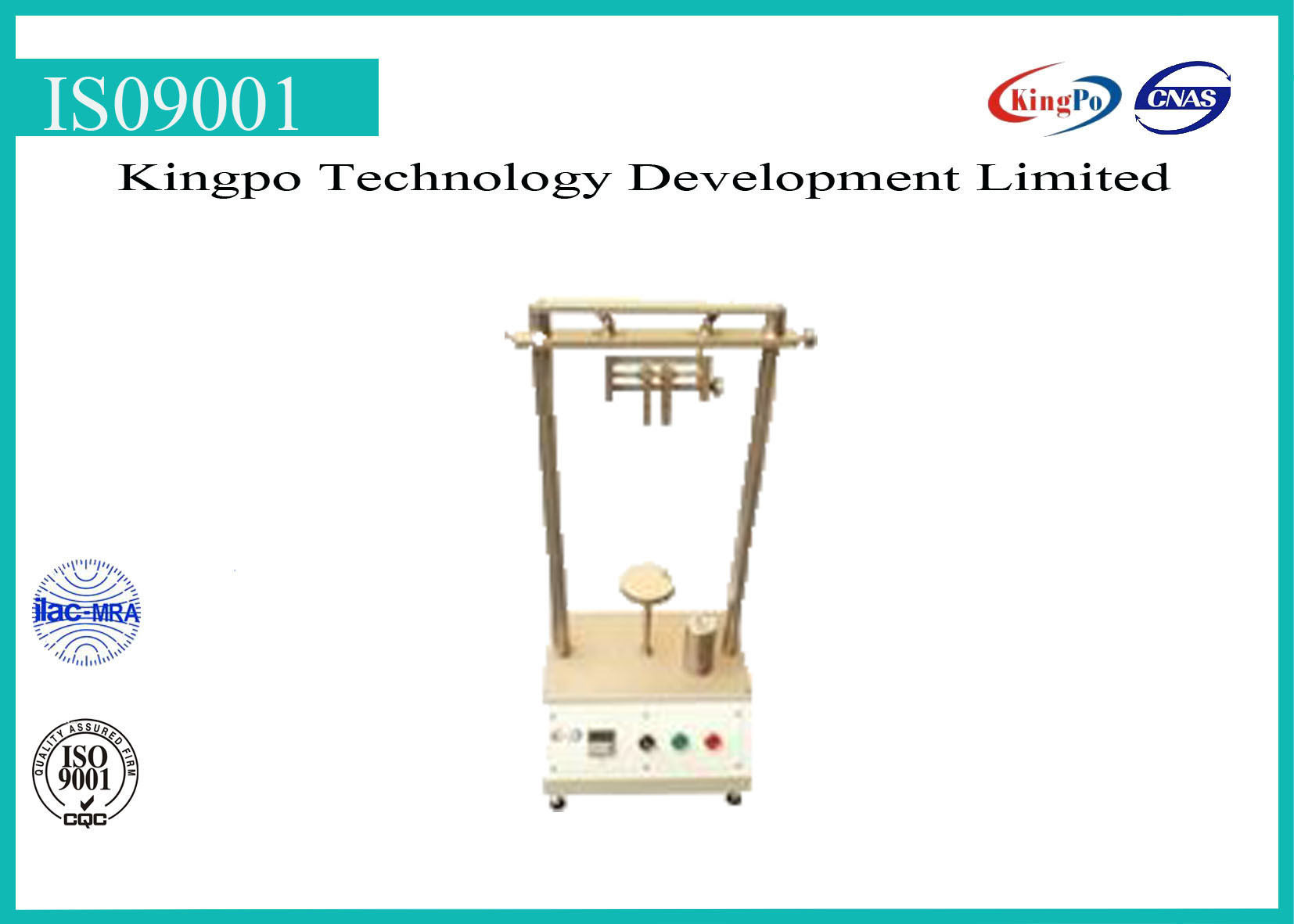

Wire Damage Degree Tester
Usage
to test wire damage degree of fixed connection component equipped with screw clamping type and screwless terminal and check if it can bear the mechanical stress during normal operation
Technical Parameters
Control system:German Siemens colorful touch screen and PLC control
Dynamical system:original Japan Panasonic servo motor
Data record:can input experimental datas into computer through USB or RS232 port;connect the printer to print data report directly
Test workposition:1workposition；
Test speed:10±2r/min；
The casing pipe should be in the horizontal plane;make its central line become a concentric clamping device at a diameter of 75 mm and be parallel to the horizontal plane;Optional casing pipe diameter:6.5 mm and 9.5 mm.
Rotary radius:30～100mm；
Weight:0.3kg,0.4 kg,0.5 kg,0.7 kg,0.9 kg,1.4 kg,2.0 kg；
Weight material:SUS304 stainless steel；
Test distance:200～400mmadjustable 【GB 2099:(260～280)mm adjustable】,【GB16915.1:(260～300)mmadjustable】；
Power: AC :220V/50Hz.
