High Accuracy Environmental Test Chamber For Electronic Components
جزئیات محصول:
| Place of Origin: | China |
| نام تجاری: | KingPo |
| گواهی: | Calibration Certificate |
| Model Number: | KP-3030-A / KP-3030-B / KP-3030-C |
پرداخت:
| Minimum Order Quantity: | 1 |
|---|---|
| قیمت: | To be quoted |
| جزئیات بسته بندی: | جعبه ایمنی کارتن یا جعبه تخته سه لا |
| زمان تحویل: | 35 روز کاری |
| Payment Terms: | T/T |
| قابلیت ارائه: | 3 مجموعه در هر ماه |
|
اطلاعات تکمیلی |
|||
| Temperature range: | Normal temperature ~1200℃ | Heating control: | S.S.R,PID |
|---|---|---|---|
| Accuracy: | ±2℃ | Temperature uniformity: | ±1.5% |
| Temperature raising speed: | 60 min to 1200±1.0℃ | Cyclic system: | thermal radiation auto power off system |
| برجسته کردن: | ,,climatic test chamber |
||
توضیحات محصول

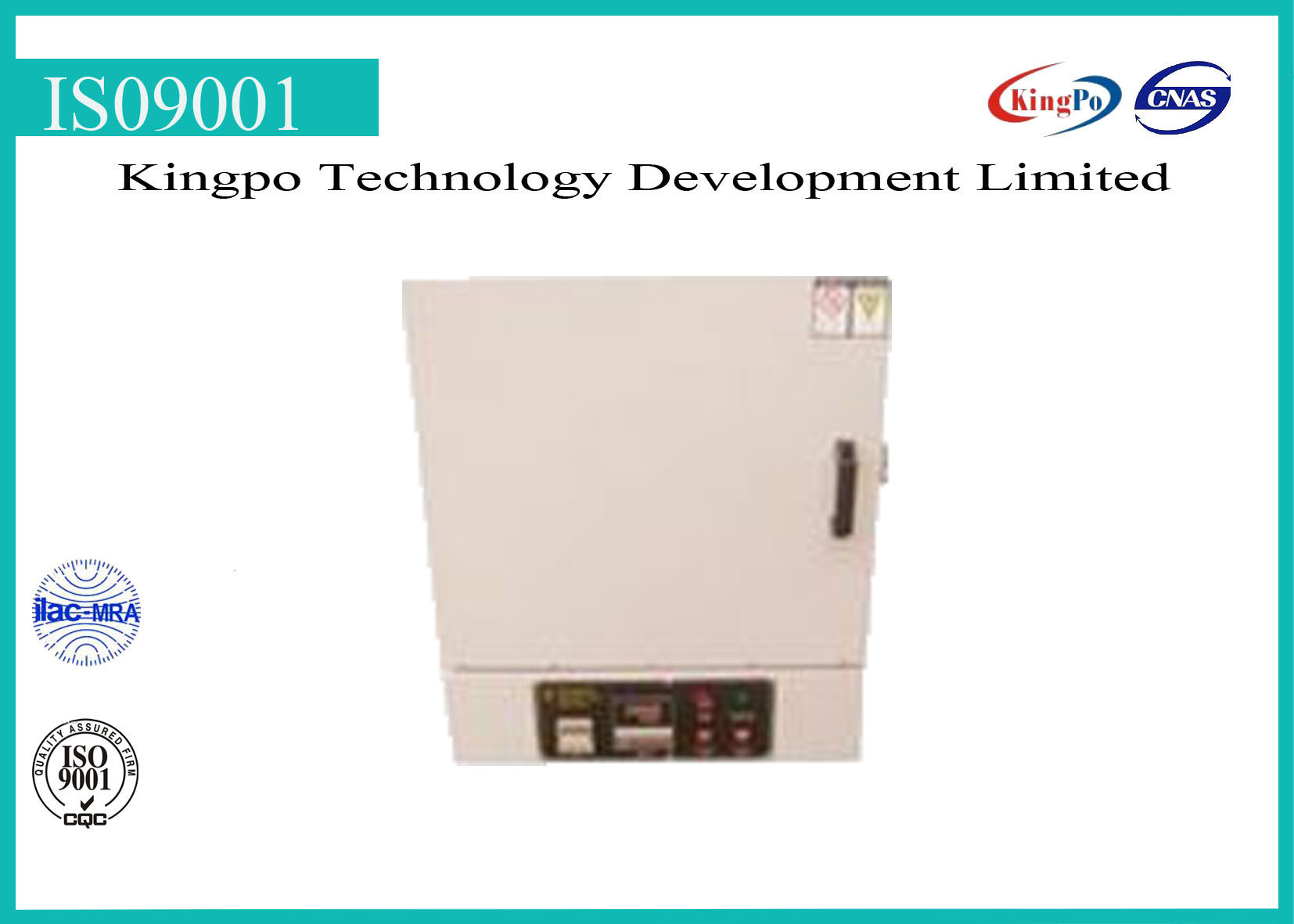

High temperature Ashing Furnace
| Function |
Aging test for electronic components and plastic, rubber and chemical products; preheating, quenching, burning, stewing, annealing, and ashing test for mental and iron; Other heat treatment test |
| Feature |
Simulating weather influence or damage on the products; Anti-aging performance of specimen to UV light |
| Weight | 45kg, 55kg, 75kg |
| Volume | 42×48×67cm; 47×48×72cm; 47×68×72cm |
Description
High temperature Ashing Furnace is mainly used for alloy steel products, and various kinds of mental parts to do tempering , high temperature reaction, and ashing test.
High temperature ashing furnace for special baking process can be used for aging test of electronic components and plastic chemical products together with iron preheat, quenching, burn, stewing, annealing, ashing test, concise and other high fever processing experiment,etc.
Features
(1). Top grade heating unit, long life for using
(2). Imported PID thermometer, precise temperature controlling function and simple operation.
(3). Rapid temperature raising and cooling;
(4). Over- temperature protective device and auto over-load power off system.
(5) . Cyclic system: thermal radiation auto power off system
Specifications
| Model | KP-3030-A | KP-3030-B | KP-3030-C |
| Working space(W×D×H) | 30×20×12cm | 20×40×30cm | 20×42×20cm |
| Temperature range | Normal temperature ~1200℃ | ||
| Heating controlling | S.S.R,PID | ||
| Accuracy | ±2℃ | ||
| Temperature uniformity | ±1.5% | ||
| Temperature raising speed | 60 min to 1200±1.0℃ | ||
| material | External chamber made of SECC steel sheet, powder coating, and inside made of ceramic plate | ||
| Volume (W×D×H) | 42×48×67cm | 47×48×72cm | 47×68×72cm |
| Weight | 45kg | 55kg | 75kg |
| Power | 1∮,AC380V,4KW | 1∮,AC380V,6KW | 1∮,AC38V,6KW |
